● Long lifespan： Up to 6000 cycles
● Advanced lithium iron phosphate technology
● Original Battery Active Balance Technology
● Flexible Capacity Options, 5.12kWh To 25.6kWh
● Easy Installation With Modular And Stacked Design
● Remote Diagnosis And Real-Time Data Monitoring
Capacity :
10.2kWhNominal Voltage :
204.8VRated Capacity :
50AhCycle Life :
≥6000Dimensions (H*W*D) :
630*940*175mmWarranty :
10 YearsUIENERGIES High Voltage Storage Stackable LiFePo4 Battery
Powerful, reliable, and backed by a decade of guaranteed performance, the UIENERGIES LiFePO4 Battery is the ultimate energy storage solution for your home or business.
With its cutting-edge technology and environmentally-friendly design, the LiFePO4 Battery empowers you to take control of your energy usage like never before. Whether you want to harness solar power, store electricity during off-peak hours, or secure a reliable backup power source, the UIENERGIES LiFePO4 Battery has got you covered.
Key Features
Long Life Cycle
The low voltage stackable lithium battery adopts high-performance lithium iron phosphate battery with high safety performance and long service life, more than 6000 cycles.
Easy Management
The UI-YRBHSS low voltage stackable lithium battery is a modular battery energy storage solution that is easy to install, saves space, and each module can be managed and operated independently to ensure system safety.
Strong Expanaibility
Modular design allowing extension, maximum Number Of Combinations /Total Power: ×5(25.6kWh)
Advanced BMS
The proprietary advanced BMS (Battery Management System) ensures ideal battery health, and we offer a 10-year warranty.
| YRBHSS-10-E1 | YRBHSS-15-E1 | YRBHSS-20-E1 | ||
| Control Module | Mode | YC-R-HC-500V25A-A | ||
| Quantity | 1 | 1 | 1 | |
| Battery Pack | Mode | YC-R-HC-102V50A-A | ||
| Quantity | 2 | 3 | 4 | |
| Base | Mode | YC-R-HC-25A-A | ||
| Quantity | 1 | 1 | 1 | |
| Battery Type | LiFePO4 | |||
| Nominal Voltage | 204.8V | 307.2V | 409.6V | |
| Rated Capacity | 50Ah | 50Ah | 50Ah | |
| Capacity | 10.2kWh | 15.3kWh | 20.4kWh | |
| Rated Charging / Discharging Current | 25A / 25A | |||
| Max. Discharge Continuous Current | 25A | |||
| Battery Max. Charge / Discharge Power | 25A | |||
| Peak Discharge Current / Power | 25A | |||
| Available SOC Range | 0~100% | |||
| Dimension | 630*940*175mm | 630*1260*175mm | 630*1580*175mm | |
| Weight | 120kg | 170kg | 220kg | |
| Operating Temperature | Charging Temperature: 0-50℃ / 32°F~ 122 °F Discharge Temperature: -20-60℃ / -4°F~ 140 °F |
|||
| Storage Temperature | -10°C~50°C / 14°F~ 122 °F | |||
| Working Humidity | 0~100% | |||
| Cycle Life( 0.5C discharge, 80%DOD ) | >6000 | |||
| Warranty | 10 Years | |||
| IP Rating | IP65 | |||
| Certification | IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC | |||

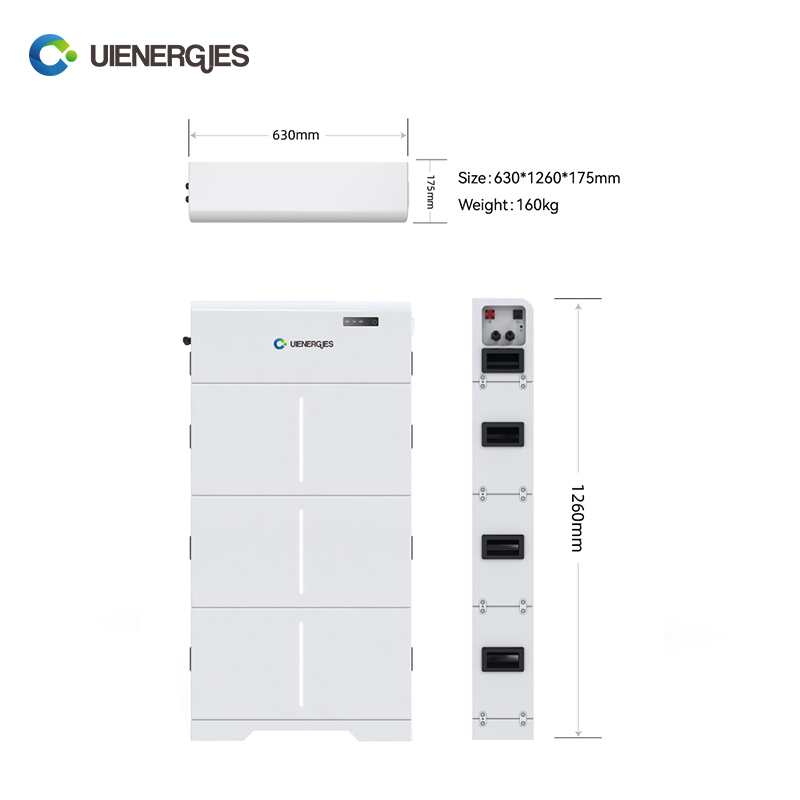

Product Size
Wide Compatibility
Compatible with mainstream brand inverters: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
Production Process
Product Cases
● High Safety：A+ grade high-quality LiFePO4 lithium battery ● Advanced BMS Control： BMS management system protection, safety first ● Communication: RS485, CAN, RS232 communication support ● Modular design allowing extension, maximum Number Of Combinations /Total Power: ×15(76.8kWh) ● Compatible with mainstream brand inverters: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO… ● Remote access with Bluetooth / WiFi for monitoring, to reduce operation and maintenance costs ● Floor-standing/Wall-mounted, convenient and easy installation
Learn More
● High Safety：LiFePO4 technology makes our batteries the safest available ● Easy to Expand: Multi-parallel Configuration, up to 15sets (153.6 kWh) ● Long Life：≧6000 cycles ● Buit-In BMS：Ultra safe Built-in BMS protection ● Matching Inverter Brands: Deye, Luxpower, Senergy, SMA, Solis,etc... ● Remote access with Bluetooth / WiFi for monitoring, to reduce operation and maintenance costs ● Floor-standing/Wall-mounted, convenient and easy installation
Learn More
● High Safety：A+ grade high-quality LiFePO4 lithium battery ● Long Life: ≧6000 cycles ● Built-in BMS: Smart Management system ● Communication: RS485, CAN communication support ● Modular design allowing extension, maximum Number Of Combinations /Total Power: ×16 ● Certification: IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC
Learn More
● High Safety：The use of the most advanced lithium iron phosphate battery core technology ● Easy to Expand: Multi-parallel Configuration, up to 16sets (81.92kWh) ● Long Life：≧6000 cycles ● Buit-In BMS：Ultra safe Built-in BMS protection ● Remote access with Bluetooth / WiFi for monitoring, to reduce operation and maintenance costs ● Certification: IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC
Learn More
● Long lifespan： Up to 6000 cycles ● Advanced lithium iron phosphate technology ● Original Battery Active Balance Technology ● Flexible Capacity Options, 5.12kWh To 25.6kWh ● Easy Installation With Modular And Stacked Design ● Remote Diagnosis And Real-Time Data Monitoring
Learn More
● Cycle life: 6000 times ● Waterproof and Dustproof: IP65 ● Advanced BMS Control ● Advanced lithium iron phosphate technology ● Maximum Number Of Combinations / Total Power: ×5(25.6kWh) ● Compatible with mainstream brands of inverters ● Certification: IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC
Learn More
● High Safety：The use of the most advanced lithium iron phosphate battery core technology ● Easy to Expand: Multi-parallel Configuration, up to 16sets (81.92kWh) ● Long Life：≧6000 cycles ● Advanced BMS Control ● Compatible with mainstream brand inverters: Victron/SMA/Goodwe/Imeon/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye etc.
Learn More
