Capacity :
3kW 2.56kWhNominal Voltage :
25.6VRated Capacity :
100AhCycle Life :
＞6000Dimensions (H*W*D) :
410*845*195mmWarranty :

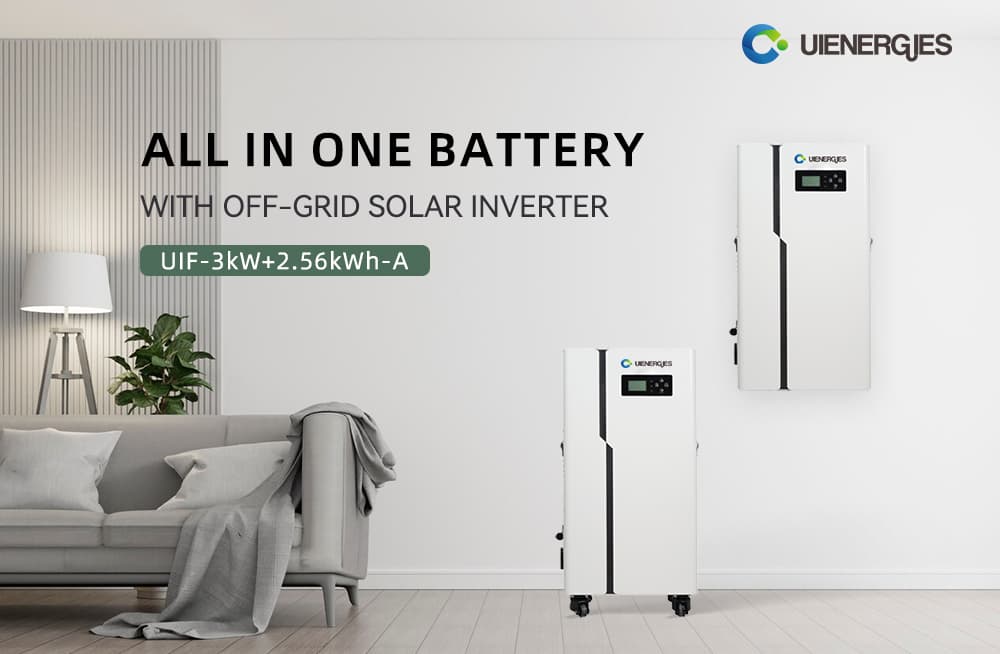

5 YearsUIENERGIES 3kW 2.56kWh All In One Battery With Off-Grid Solar Inverter
By offering a comprehensive, efficient, and versatile energy solution, a 3kW 2.56kWh all-in-one battery with an off-grid solar inverter is an attractive option for those seeking reliable and sustainable power.
Key Features
Integrated System:
Combines a 3kW solar inverter and a 2.56kWh battery in one unit, providing a streamlined solution for solar power generation, storage, and utilization.
Energy Independence：
Enables users to operate independently of the grid, making it ideal for remote locations or areas with unreliable grid power.
Ease of Setup:
Reduces installation complexity and time by integrating all necessary components into a single unit.
Reduced Initial Investment:
Lower overall cost compared to purchasing separate inverter, battery, and other components. Potential savings on installation and labor costs due to the integrated design.
| Datasheet | UIF-256100-A |
| Battery Type | LiFePO4 |
| Nominal Voltage | 25.6V |
| Rated Capacity | 100Ah |
| Capacity | 2.56kWh |
| Max PV OCV | 160VDC |
| MPPT Voltage Range | 30~128VDC |
| Max Input Power | 1600W |
| Max Charge-Discharge Current | 50A |
| Input/Output Voltage | 220~240VAC |
| Optional Voltage Range | 170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE) |
| Input Current | 14A |
| Output Current | 17A(Term)/10A(Outlet) |
| Frequency | 3000W |
| Communication | RS485/WIFI |
| Altitude | ≤2000m |
| Cooling-down Method | Built In Fan |
| Installation Method | Wall or Floor Standing |
| IP Rating | IP20 |
| Cycle Life(25℃,80% DOD) | ≥6000 |
| Operating Temperature | 0~55℃ |
| Storage Temperature | -20~55℃ |
| Humidity | ≤80% |
| Product Dimenstion | 410*845*195mm |
| Package Dimenstion | 510*945*315mm |
| Weight | 45kg |
| Certification | CE/UL/FCC/UN38.3/MSDS |
Product Size
Product Cases
Product Applications
Production Process
Product Packing & Delivery
● High Safety：A+ grade high-quality LiFePO4 lithium battery ● Advanced BMS Control： BMS management system protection, safety first ● Communication: RS485, CAN, RS232 communication support ● Modular design allowing extension, maximum Number Of Combinations /Total Power: ×15(76.8kWh) ● Compatible with mainstream brand inverters: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO… ● Remote access with Bluetooth / WiFi for monitoring, to reduce operation and maintenance costs ● Floor-standing/Wall-mounted, convenient and easy installation
