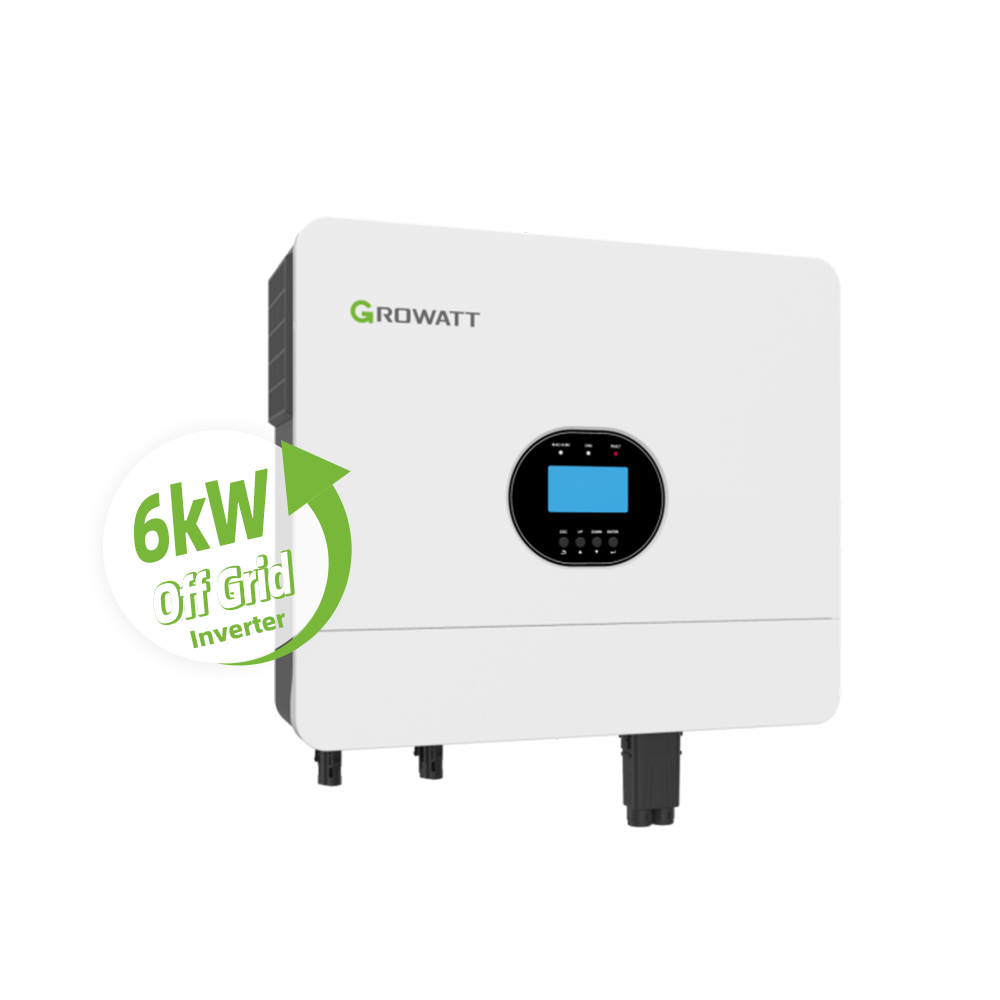

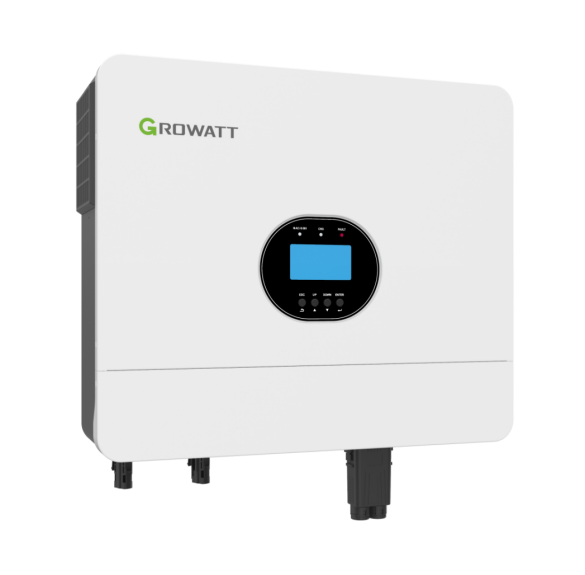

Growatt SPF 6000 ES Plus
* Key Features
1. Dual MPPT design for higher solar generation efficiency
2. Plug-and-play PV terminal for quick and easy installation

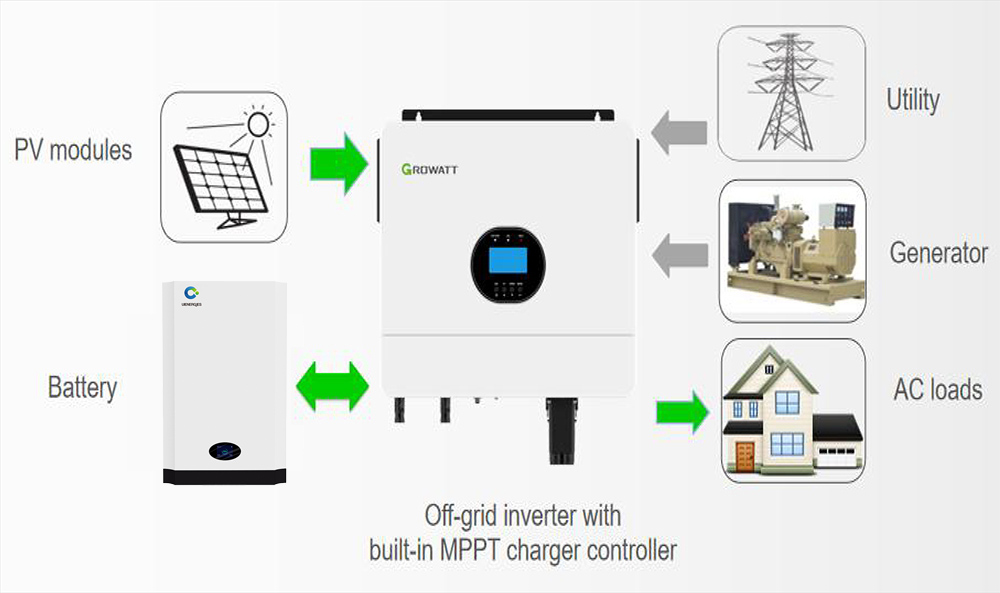

3. Two AC inputs with built-in transfer switch for seamless power switching
4. Dust-proof filter designed for harsh environments
5. High PV input voltage up to 500VDC to support larger PV arrays

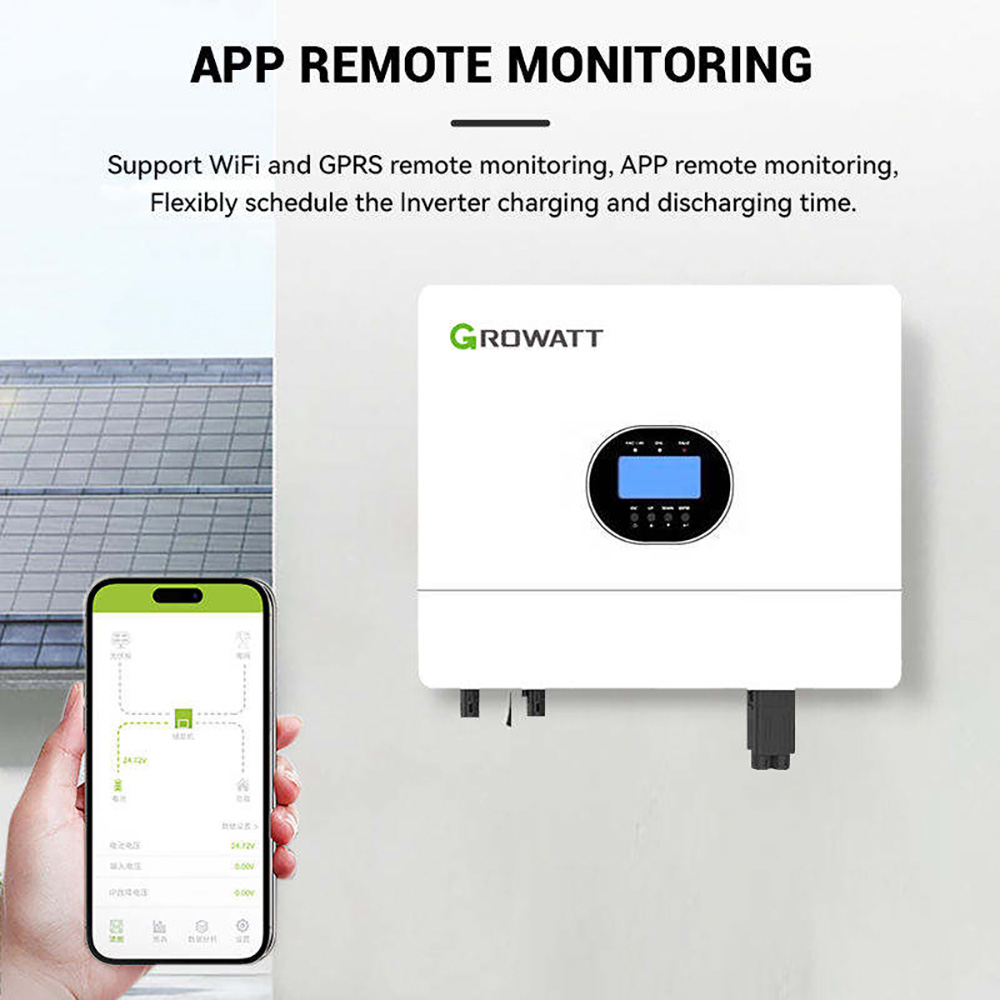

6. Configurable charging & output schedules for flexible energy management
7. Equalization charging function to optimize battery performance
8. Customizable output and charging priority (Grid / Solar / Battery)
9. SUB working mode for smart hybrid operation

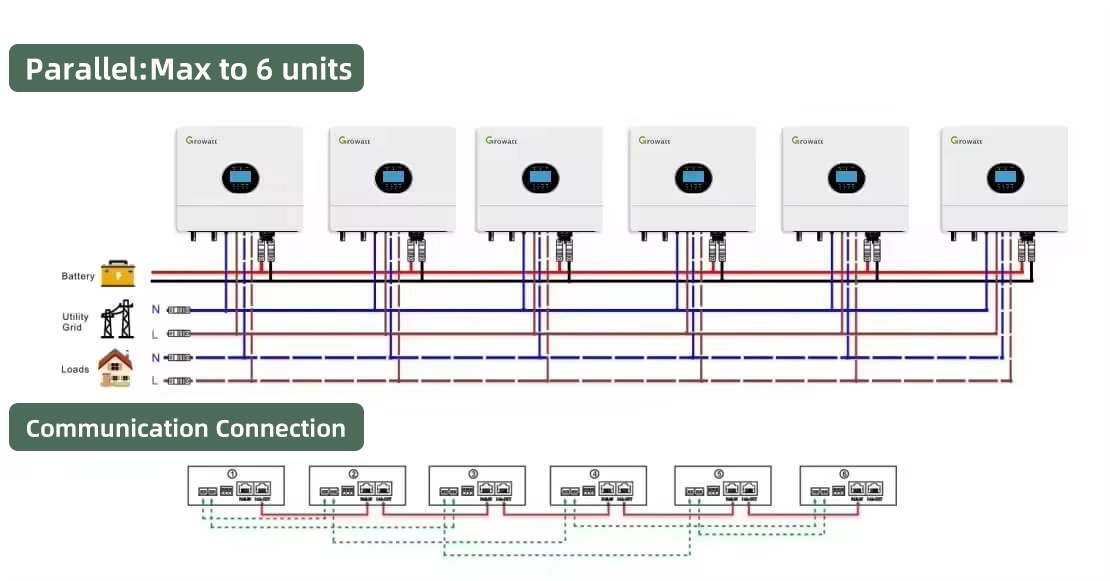

10. Parallel support up to 6 units for expanded power capacity
11. Lithium battery compatible with advanced BMS communication
12. Supports operation with or without a battery for maximum versatility
Product Parameter
|
Datasheet
|
SPF 6000 ES Plus
|
|
Battery Voltage
|
48VDC
|
|
Battery Type
|
Lithium/Lead-acid
|
|
Inverter Output
|
|
|
Rated Power
|
6000VA/6000W
|
|
Parallel Capability
|
Yes, 6 units maximum
|
|
AC Voltage Regulation
(Battery Mode) |
230VAC ± 5% @ 50/60Hz
|
|
Surge Power
|
12000VA
|
|
Efficiency (Peak)
|
93%
|
|
Waveform
|
Pure sine wave
|
|
Transfer Time
|
10ms typical，20ms Max
|
|
Solar Charger
|
|
|
Maximum PV Array Power
|
8000W
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 450VDC
|
|
Number of Independent MPP Trackers/
Strings Per MPP Tracker |
2/1
|
|
Max. input current per MPP tracker
|
16A
|
|
Maximum PV Array Open
Circuit Voltage |
500VDC
|
|
Maximum Solar Charge Current
|
100A
|
|
AC Charger
|
|
|
Charge Current
|
80A
|
|
AC Input Voltage
|
230VAC
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
Physical
|
|
|
Protection Degree
|
IP20
|
|
Dimension (W/H/D)
|
460/395/132mm
|
|
Net Weight (kgs)
|
13.5
|
|
Operating Environment
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
Altitude
|
<2000m
|
|
Operating Temperature
|
0°C - 55°C
|
|
Storage Temperature
|
-15°C - 60°C
|
| Model | SPF 3000-5000 ES | SPF 6000 ES Plus | Benefits |
| Parameters | |||
| Maximum PV arrayopen circuit voltage | 450V | 500V | Each string can be connected to more modules, PV input power up to 8000W |
| No. of MPP trackers | 1 | 2 | PV module strings can be installed at different orientations |
| Max.PVinput current | 22A | 32A(16/16) | More PV strings can be connected to increase input capacity, compatible with 500+ PV modules |
| AC input source | Utility power or generator | Utility power and generator | No need for the extra ATS device to communicate between the inverter and the AC source |
| PV terminal | Wire connection | MC4 connection | Easy and tighten the connection, saving installation time |
| Air flow | Without filter | Dust-proof design | Prevent inverter faults caused by excessive dust and make it easy for maintenance |

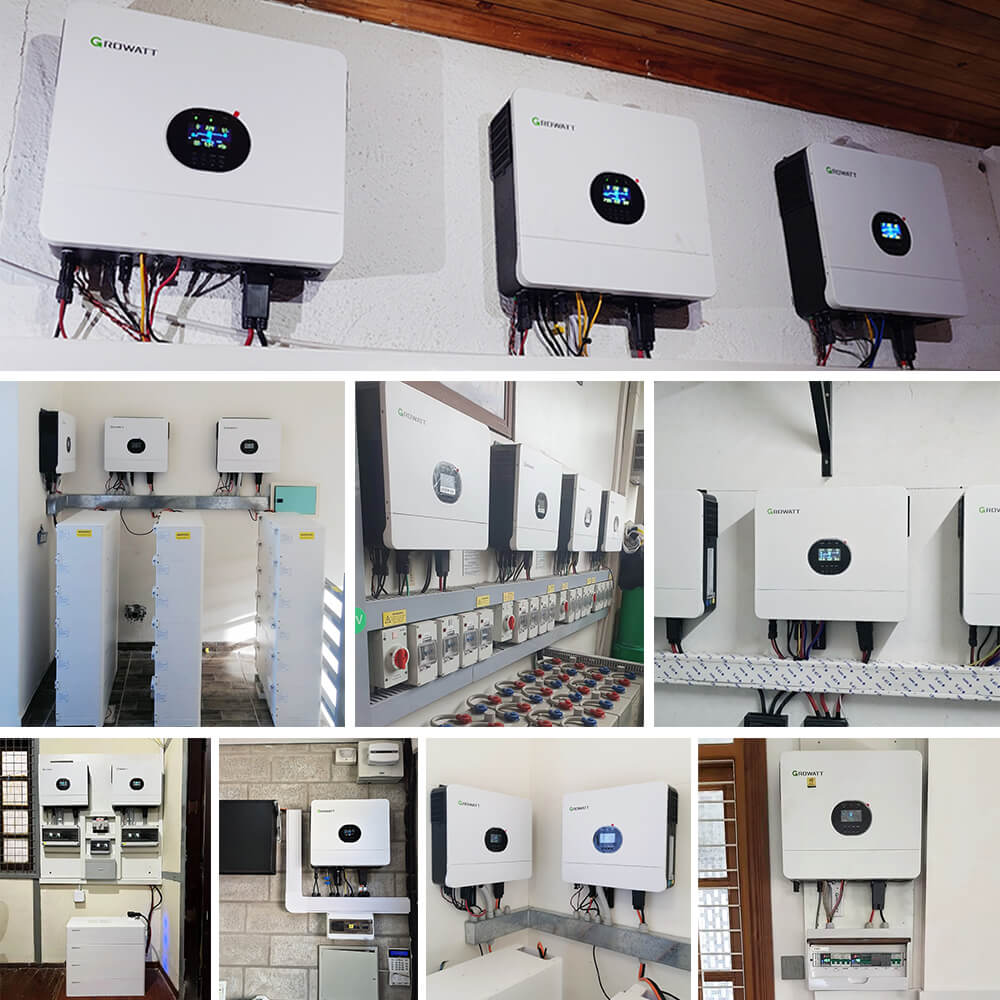

Application
Plug-and-play PV terminals for fast installation Dual MPPT trackers to maximize solar generation High PV input voltage up to 500 VDC Configurable solar or grid priority Dual AC inputs with built-in ATS Supports parallel operation up to 36 kW 6000 W pure sine wave output with strong surge capacity
